  • Shinseong portable machine

    The portable machine of Shinseong EMI is travelling multi function machine to be captured patent for processing such as boring, face milling, drill, tap and etc.
    Shinseong is having the machine for NC/CNC type.
    All of machines are produced for special field condition.

    • Large portable face milling machine
      Large portable face milling machine
    • Small portable boring machine Small portable boring machine
      Small portable boring machine

    • Boring and face milling machine for NC-TYPE
      Boring and face milling machine for NC-TYPE

    • Potable face milling machine for CNC-TYPE Potable face milling machine for CNC-TYPE
      Potable face milling machine for CNC-TYPE



  • The specification of Shinseong portable machines

    The specification of Shinseong portable machines
    NO Machine Photo Specification and coverage for processing Remarks
    Size(mm) Boring Face Milling Drilling Tapping
    Length Width Height
    1 Large portable face milling machine Large portable face milling machine 6,484 2,420 2,440 Min. Ø30~
    Max. Ø300    		 Min. Ø4,000~
    Max. Ø15,000    		 Min. Ø1~
    Max. Ø50    		 Min. M4~
    Max. M30    		 Suitable for big processed article
    2 Potable face milling machine for CNC-TYPE Potable face milling machine for CNC-TYPE 3,440 2,530 1,248 Min. Ø30~
    Max. Ø500    		 2,960 x 2,210 Min. Ø1~
    Max. Ø50    		 Min. M4~
    Max. M30    		 Manufacture related process for POSCO(Gwangyang)
    3 Small portable boring machine Small portable boring machine 1,600 860 860 Min. Ø60~
    Max .Ø1,600    		 - - - Expansion of processing range for tool manufacture itself
    4 Boring and face milling machine for NC-TYPE Boring and face milling machine for NC-TYPE 2,000 500 2,000 Min. Ø30~
    Max. Ø1,800    		 2,000 x 2,000 Min. Ø1~
    Max. Ø50    		 Min. M4~
    Max. M30    		 Possible for line-boring



  • Processing equipment

    • MCT 3
      MCT 3
    • MCT 5
      MCT 5
    • General purpose lathe
      General purpose lathe
    • Band saw
      Band saw
    • Radial
      Radial

  • Exclusive agency of Sir meccanica in italy

    The portable machine of SIR MECCANICA is travelling multi function processing machine. It is are possible to in-line boring, overlay welding and external drilling – tapping – facing bosses.
    - The portable machine production and supply of various sizes to be optimized from Diameter 42mm to 600mm. Exclusive Contract with Sir MECCANICA which is producer of global portable machine in korea market in 2012.

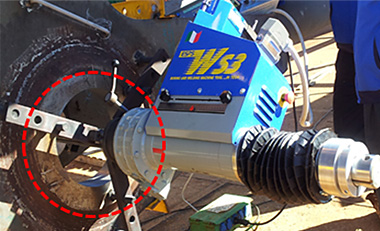

    • W Series (WS~WS7)
      W Series (WS~WS7)
    • RSX9 Series
      RSX9 Series
    • Top Series
      Top Series





  • Example for machine use (Facing)

    :: Facing
    • Facing milling( Dia 450~500mm)
      Facing milling( Dia 450~500mm)

    • Facing
    • Facing


    • Facing
    • Boring works for lug + facing milling<br />(Dia 200. total length-4,500mm)
      Boring works for lug + facing milling(Dia 200. total length-4,500mm)
    • Boring works for lug + facing milling(Dia 90mm)
      Boring works for lug + facing milling(Dia 90mm)



  • :: Drilling

    Drilling


  • :: Boring
    • Boring works (Dia 450~500mm)
      Boring works (Dia 450~500mm)
